The Lab

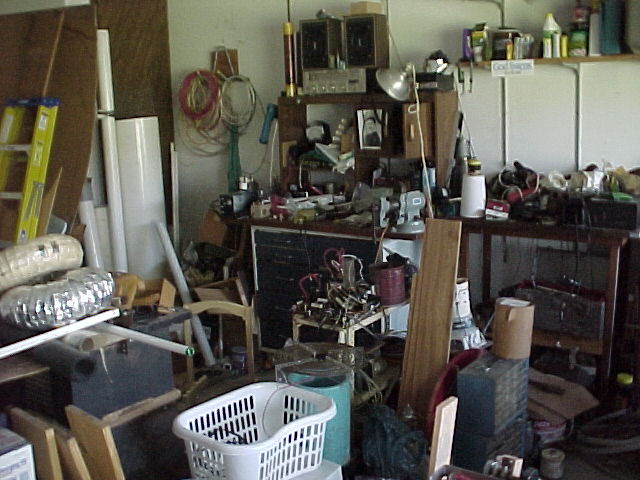

This is a shot of my "lab".

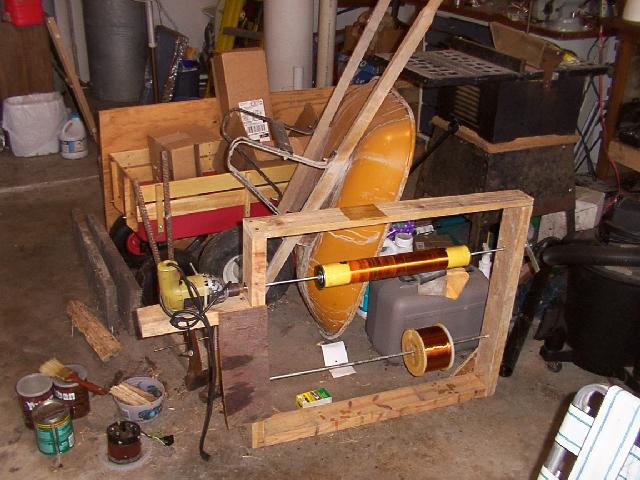

This is the winder I used for my first secondaries.

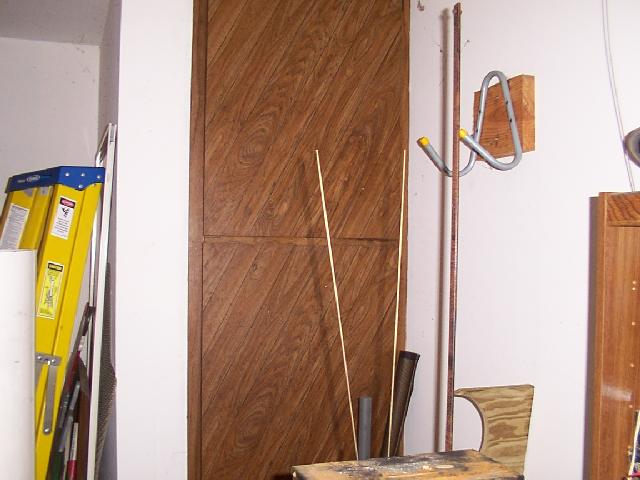

A good old Jacob's Ladder

tspark1.jpg tlittle_flame.jpg tBig_flame.jpg

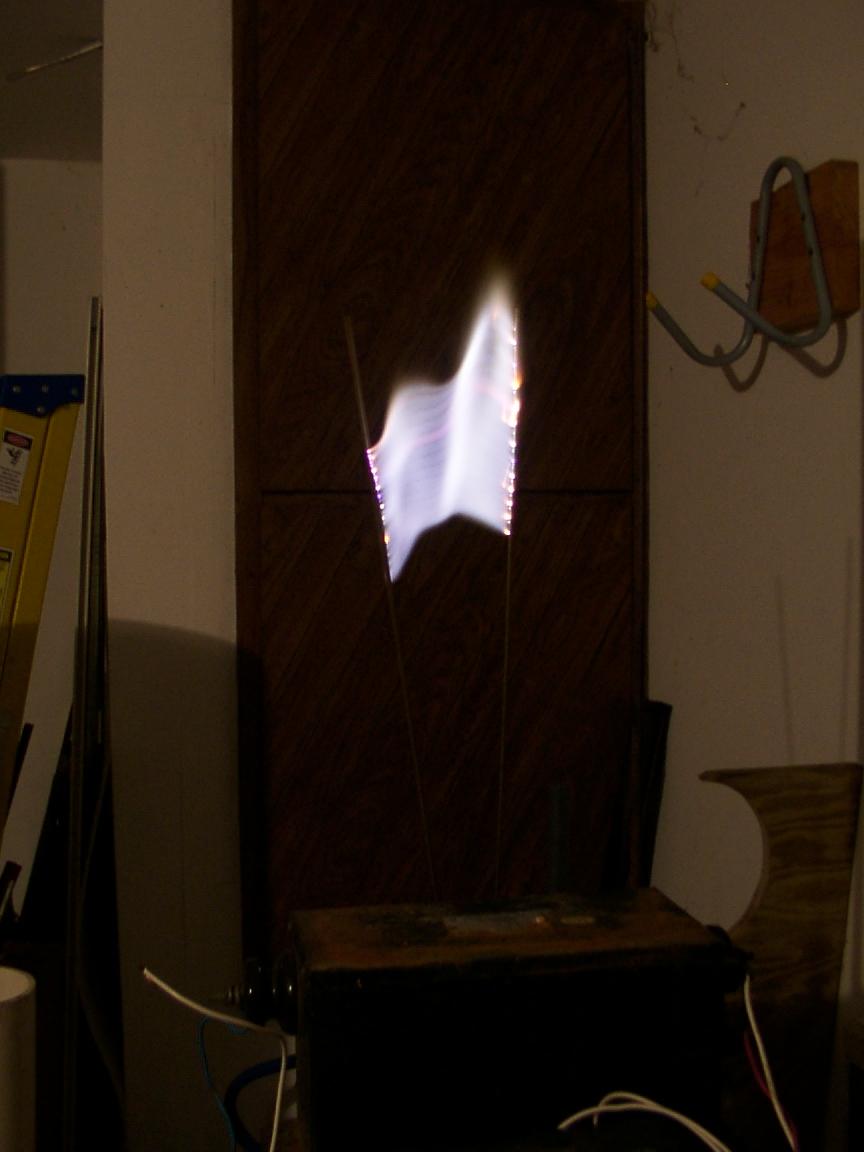

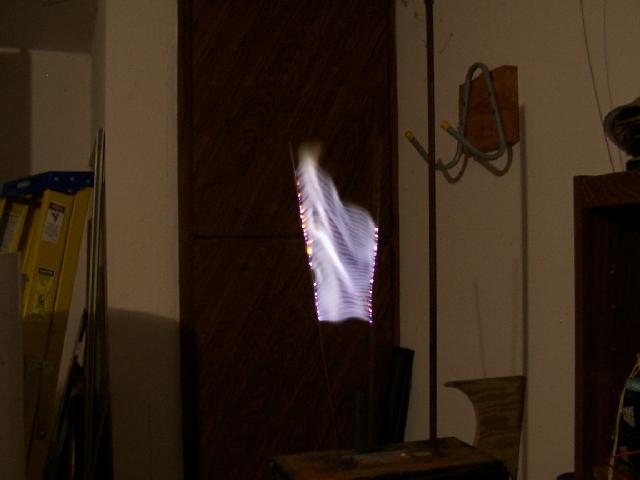

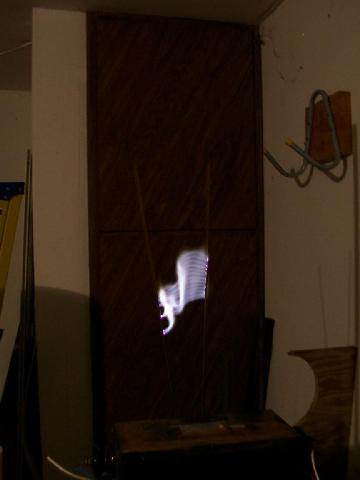

Jacob's Ladder in action

tnew_coil.jpg  tnew_coil_form.jpg

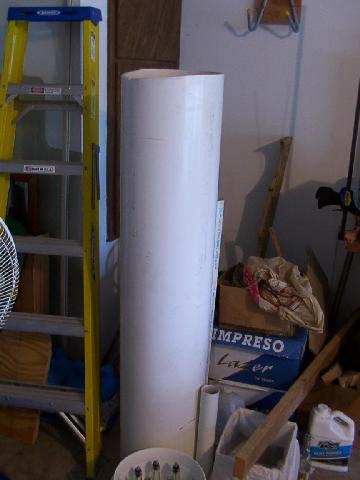

A nice piece of 12" PVC begging to be wound.

Big Cap Big Cap2 Big Cap3

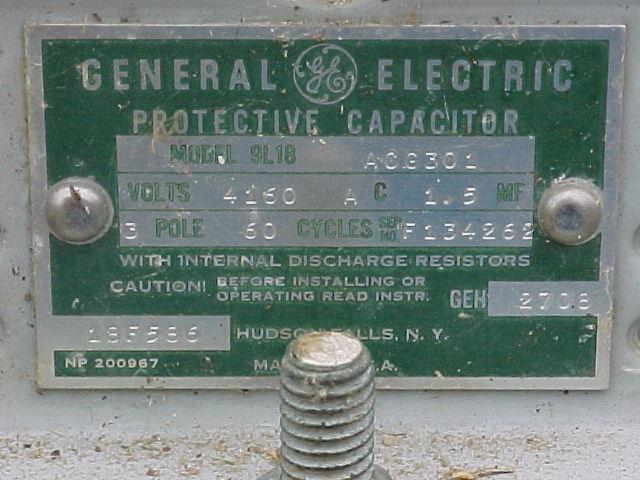

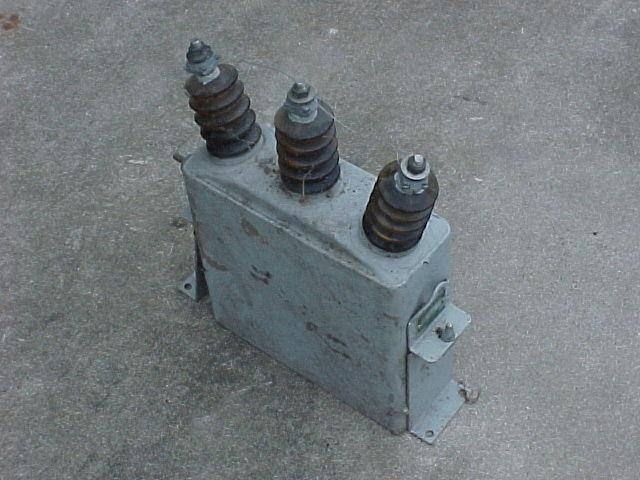

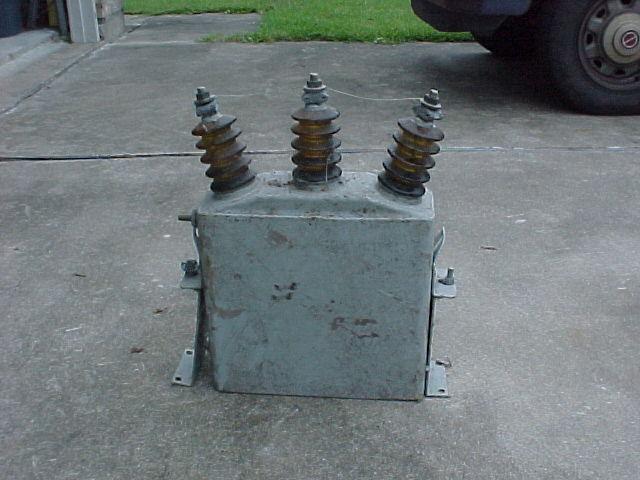

This is a large capacitor a friend gave me. It has three sections with a value of .5uF @ 4160VAC for a grand total of 1.5uF @ 4160VAC.
