The two spark gaps that I presently use are a small RQ/TCBOR gap(left) and a single gap(right) one I created.


This is a small synchronous RSG I'm building.

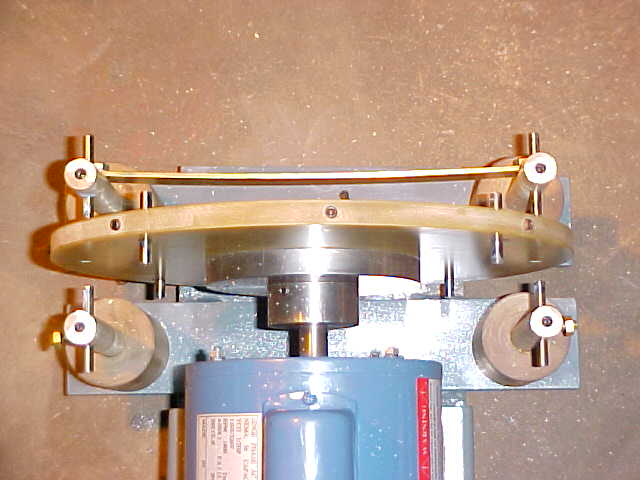

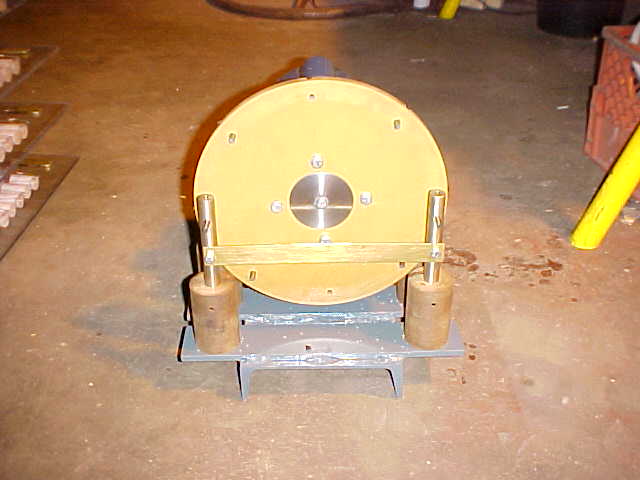

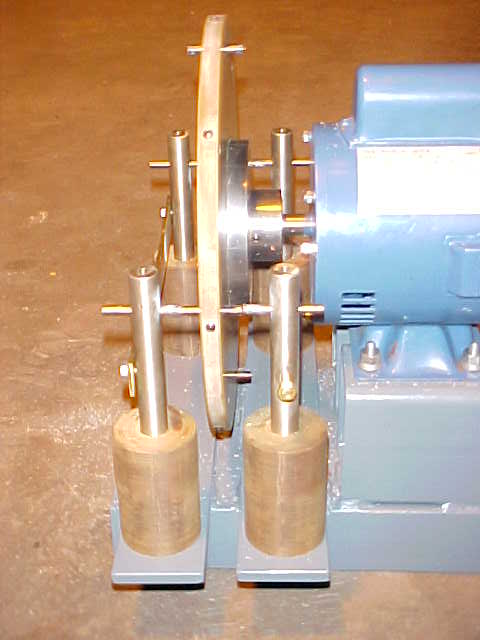

This is a large synchronous RSG I recently built for a 10kVA coil.

And finally a couple of shots of my main safety gap. Safety Gap
